mod_data_driven_boundary Module Reference

Utilities for reading AMRVAC data-driven magnetic boundary frames. More...

Data Types
type	data_driven_boundary_series

Functions/Subroutines
subroutine	read_data_driven_boundary_frame (filename, snapshot_time, nx, ny, dx_km, dy_km, bframe)
subroutine	read_data_driven_boundary_header (filename, snapshot_time, nx, ny, dx_km, dy_km)
subroutine	read_data_driven_boundary_frame_into (filename, snapshot_time, nx, ny, dx_km, dy_km, bframe)
subroutine	read_data_driven_boundary_series (directory, series, prefix, expected_nframe)
subroutine	interpolate_data_driven_boundary (series, time_seconds, bframe, left_index, weight)
subroutine	ensure_data_driven_boundary_pair (series, lo, left_slot, right_slot)
subroutine	load_data_driven_boundary_cache_slot (series, iframe, slot)
subroutine	interpolate_data_driven_boundary_scaled (series, time_code, unit_time_seconds, driving_time_scale, bframe, left_index, weight)
subroutine	destroy_data_driven_boundary_series (series)

Detailed Description

Utilities for reading AMRVAC data-driven magnetic boundary frames.

Python V1 writes each frame as a stream binary file with layout: snapshot_time, nx, ny, dx, dy, Bx, By, Bz.

The spacing dx/dy is stored in km and magnetic-field components are stored in Gauss. The magnetic data are ordered as a Fortran array (nx, ny, 3).

Function/Subroutine Documentation

destroy_data_driven_boundary_series()

subroutine mod_data_driven_boundary::destroy_data_driven_boundary_series

(

type(data_driven_boundary_series), intent(inout)

series

)

Definition at line 273 of file mod_data_driven_boundary.t.

ensure_data_driven_boundary_pair()

subroutine mod_data_driven_boundary::ensure_data_driven_boundary_pair	(	type(data_driven_boundary_series), intent(inout)	series,
		integer, intent(in)	lo,
		integer, intent(out)	left_slot,
		integer, intent(out)	right_slot
	)

Definition at line 203 of file mod_data_driven_boundary.t.

Here is the call graph for this function:

interpolate_data_driven_boundary()

subroutine mod_data_driven_boundary::interpolate_data_driven_boundary	(	type(data_driven_boundary_series), intent(inout)	series,
		double precision, intent(in)	time_seconds,
		double precision, dimension(series%nx,series%ny,3), intent(out)	bframe,
		integer, intent(out), optional	left_index,
		double precision, intent(out), optional	weight
	)

Definition at line 172 of file mod_data_driven_boundary.t.

Here is the call graph for this function:

interpolate_data_driven_boundary_scaled()

subroutine mod_data_driven_boundary::interpolate_data_driven_boundary_scaled	(	type(data_driven_boundary_series), intent(inout)	series,
		double precision, intent(in)	time_code,
		double precision, intent(in)	unit_time_seconds,
		double precision, intent(in)	driving_time_scale,
		double precision, dimension(series%nx,series%ny,3), intent(out)	bframe,
		integer, intent(out), optional	left_index,
		double precision, intent(out), optional	weight
	)

Parameters

[in,out]

series

Interpolate using AMRVAC code time. driving_time_scale is the observational-time advance per simulated second; values greater than one therefore accelerate the observed boundary evolution.

Definition at line 254 of file mod_data_driven_boundary.t.

Here is the call graph for this function:

load_data_driven_boundary_cache_slot()

subroutine mod_data_driven_boundary::load_data_driven_boundary_cache_slot	(	type(data_driven_boundary_series), intent(inout)	series,
		integer, intent(in)	iframe,
		integer, intent(in)	slot
	)

Definition at line 230 of file mod_data_driven_boundary.t.

Here is the call graph for this function:

read_data_driven_boundary_frame()

subroutine mod_data_driven_boundary::read_data_driven_boundary_frame	(	character(len=*), intent(in)	filename,
		double precision, intent(out)	snapshot_time,
		integer, intent(out)	nx,
		integer, intent(out)	ny,
		double precision, intent(out)	dx_km,
		double precision, intent(out)	dy_km,
		double precision, dimension(:,:,:), intent(out), allocatable	bframe
	)

Definition at line 24 of file mod_data_driven_boundary.t.

Here is the call graph for this function:

read_data_driven_boundary_frame_into()

subroutine mod_data_driven_boundary::read_data_driven_boundary_frame_into	(	character(len=*), intent(in)	filename,
		double precision, intent(out)	snapshot_time,
		integer, intent(out)	nx,
		integer, intent(out)	ny,
		double precision, intent(out)	dx_km,
		double precision, intent(out)	dy_km,
		double precision, dimension(:,:,:), intent(out)	bframe
	)

Definition at line 69 of file mod_data_driven_boundary.t.

Here is the call graph for this function:

read_data_driven_boundary_header()

subroutine mod_data_driven_boundary::read_data_driven_boundary_header	(	character(len=*), intent(in)	filename,
		double precision, intent(out)	snapshot_time,
		integer, intent(out)	nx,
		integer, intent(out)	ny,
		double precision, intent(out)	dx_km,
		double precision, intent(out)	dy_km
	)

Definition at line 35 of file mod_data_driven_boundary.t.

Here is the call graph for this function:

read_data_driven_boundary_series()

subroutine mod_data_driven_boundary::read_data_driven_boundary_series	(	character(len=*), intent(in)	directory,
		type(data_driven_boundary_series), intent(inout)	series,
		character(len=*), intent(in), optional	prefix,
		integer, intent(in), optional	expected_nframe
	)

Definition at line 96 of file mod_data_driven_boundary.t.

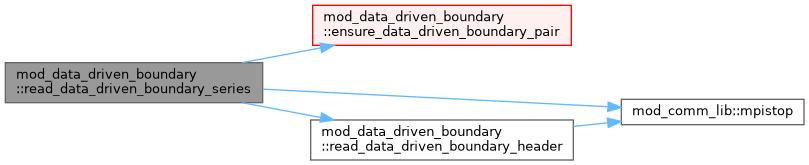

Here is the call graph for this function:
