mod_eos_lte_entropy Module Reference

Entropy-method LTE EoS: every query is ONE bicubic Hermite evaluation. More...

Functions/Subroutines
subroutine, public	load_entropy_lte ()
	Forward (log nH, log eint/nH) -> thermodynamic state.
subroutine, public	finalise_entropy_lte ()
	Entropy-method finalise: shift each loaded table's axes from CGS to code units and run the standard prepare. No aux builds – every runtime quantity is a single Hermite lookup. neOnH/Tfwd/pfwd/eintP/g1p are on (log nH, log eint/nH) (axis2_is_T=.false.); eintT is on (log nH, log T) (axis2_is_T=.true.). Each quantity ships value + three derivative tables.
double precision function, public	entropy_t_from_nh_eint (tfwd, tfwd_x, tfwd_y, tfwd_xy, log_nh_code, log_e_nh_code)
	Public wrappers – code-unit out.
pure double precision function, public	entropy_p_nh_from_eint (pfwd, pfwd_x, pfwd_y, pfwd_xy, log_nh_code, log_e_nh_code)
double precision function, public	entropy_y_from_nh_eint (neonh, neonh_x, neonh_y, neonh_xy, log_nh_code, log_e_nh_code)
	Forward: ne/nH from (log nH, log eint/nH). Single bicubic Hermite eval of the neOnH table.
subroutine, public	entropy_t_and_y_from_nh_eint (tfwd, tfwd_x, tfwd_y, tfwd_xy, neonh, neonh_x, neonh_y, neonh_xy, log_nh_code, log_e_nh_code, t_code, y_out)
	Forward: T and y from (log nH, log eint/nH) – combined for the update_eos_LTE hot path that needs both at once.
double precision function, public	entropy_eint_from_nh_p (eintp, eintp_x, eintp_y, eintp_xy, log_nh_code, log_p_nh_code)
	Inverse: log10(eint/nH) from (log nH, log p/nH). Single bicubic Hermite eval of the eintP table. Replaces p2eint bisection.
subroutine, public	entropy_eint_from_p_bisect (pfwd, pfwd_x, pfwd_y, pfwd_xy, eintp, eintp_x, eintp_y, eintp_xy, log_nh_code, log_p_nh_code, log_eint_nh_code)
	Bisection inverse for the entropy table set: find log10(eint/nH) [code] such that p(nH, eint) = p_target exactly, using the forward pfwd table. The eintP table only supplies the initial guess. This is the entropy-mode counterpart of eint_from_p_bisect (mod_eos_LTE), which is bound to eoslog_p - a table that is not loaded when eos_method='entropy' (its use there segfaulted on an unallocated array).
double precision function, public	entropy_gamma1_from_nh_p (g1p, g1p_x, g1p_y, g1p_xy, log_nh_code, log_p_nh_code)
	Inverse: Gamma_1 from (log nH, log p/nH). Bicubic Hermite of g1p.
double precision function, public	entropy_eint_from_nh_t (eintt, eintt_x, eintt_y, eintt_xy, log_nh_code, log_t_code)
	Inverse: log10(eint/nH) from (log nH, log T). Single bicubic Hermite eval of the eintT table.

Detailed Description

Entropy-method LTE EoS: every query is ONE bicubic Hermite evaluation.

Each quantity is stored as four tables – the value plus its three derivatives (d/dx, d/dy, d2/dxdy) at every node – which fully determine the bicubic Hermite polynomial in each cell: exact at nodes, O(h^4) inside, no closure. No Newton, bisection, or iteration on the hot path; the iterative work is done offline against the analytic Saha solver (see entropy128/generate_entropy_tables.py).

Forward tables, axes (log10 nH, log10 eint/nH): Tfwd -> T pfwd -> p neOnH -> ne/nH Inverse tables: eintP (log nH, log p/nH) -> log10(eint/nH) eintT (log nH, log T) -> log10(eint/nH) g1p (log nH, log p/nH) -> Gamma_1

Gamma_1 is tabulated directly (g1p) rather than recovered from second derivatives, so the lookup stays smooth; values are Maxwell-consistent with (p, T) by construction.

Function/Subroutine Documentation

entropy_eint_from_nh_p()

double precision function, public mod_eos_lte_entropy::entropy_eint_from_nh_p	(	type(eos_table_container), intent(in)	eintp,
		type(eos_table_container), intent(in)	eintp_x,
		type(eos_table_container), intent(in)	eintp_y,
		type(eos_table_container), intent(in)	eintp_xy,
		double precision, intent(in)	log_nh_code,
		double precision, intent(in)	log_p_nh_code
	)

Inverse: log10(eint/nH) from (log nH, log p/nH). Single bicubic Hermite eval of the eintP table. Replaces p2eint bisection.

Returns the eint/p ratio for drop-in compatibility with the existing p2eint_from_nH_p call sites which use it as eint = p * (returned ratio).

Parameters

[in]	eintp	Returns eint/p in dimensionless code units. The stored table value is log10(eint/nH) in CGS; we convert to code (axis-2 shift = the same log10(unit_pressure/unit_numberdensity) as for log(p/nH) and log(eint/nH)) before forming the ratio with log_p_nH_code, otherwise the units mix.
[in]	eintp_x	Returns eint/p in dimensionless code units. The stored table value is log10(eint/nH) in CGS; we convert to code (axis-2 shift = the same log10(unit_pressure/unit_numberdensity) as for log(p/nH) and log(eint/nH)) before forming the ratio with log_p_nH_code, otherwise the units mix.
[in]	eintp_y	Returns eint/p in dimensionless code units. The stored table value is log10(eint/nH) in CGS; we convert to code (axis-2 shift = the same log10(unit_pressure/unit_numberdensity) as for log(p/nH) and log(eint/nH)) before forming the ratio with log_p_nH_code, otherwise the units mix.
[in]	eintp_xy	Returns eint/p in dimensionless code units. The stored table value is log10(eint/nH) in CGS; we convert to code (axis-2 shift = the same log10(unit_pressure/unit_numberdensity) as for log(p/nH) and log(eint/nH)) before forming the ratio with log_p_nH_code, otherwise the units mix.

Definition at line 363 of file mod_eos_LTE_entropy.t.

entropy_eint_from_nh_t()

double precision function, public mod_eos_lte_entropy::entropy_eint_from_nh_t	(	type(eos_table_container), intent(in)	eintt,
		type(eos_table_container), intent(in)	eintt_x,
		type(eos_table_container), intent(in)	eintt_y,
		type(eos_table_container), intent(in)	eintt_xy,
		double precision, intent(in)	log_nh_code,
		double precision, intent(in)	log_t_code
	)

Inverse: log10(eint/nH) from (log nH, log T). Single bicubic Hermite eval of the eintT table.

Parameters

[in]	eintt	Stored table value is log10(eint/nH) in CGS; convert to code units before returning so the caller can use it as a code-unit log directly.
[in]	eintt_x	Stored table value is log10(eint/nH) in CGS; convert to code units before returning so the caller can use it as a code-unit log directly.
[in]	eintt_y	Stored table value is log10(eint/nH) in CGS; convert to code units before returning so the caller can use it as a code-unit log directly.
[in]	eintt_xy	Stored table value is log10(eint/nH) in CGS; convert to code units before returning so the caller can use it as a code-unit log directly.

Definition at line 459 of file mod_eos_LTE_entropy.t.

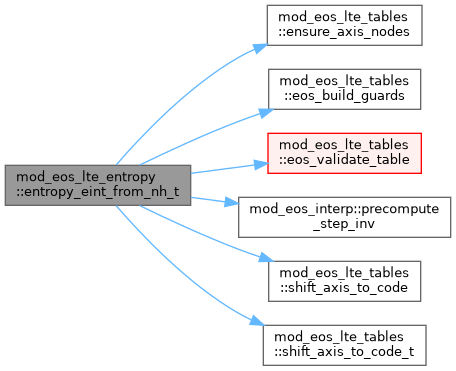

Here is the call graph for this function:

entropy_eint_from_p_bisect()

subroutine, public mod_eos_lte_entropy::entropy_eint_from_p_bisect	(	type(eos_table_container), intent(in)	pfwd,
		type(eos_table_container), intent(in)	pfwd_x,
		type(eos_table_container), intent(in)	pfwd_y,
		type(eos_table_container), intent(in)	pfwd_xy,
		type(eos_table_container), intent(in)	eintp,
		type(eos_table_container), intent(in)	eintp_x,
		type(eos_table_container), intent(in)	eintp_y,
		type(eos_table_container), intent(in)	eintp_xy,
		double precision, intent(in)	log_nh_code,
		double precision, intent(in)	log_p_nh_code,
		double precision, intent(out)	log_eint_nh_code
	)

Bisection inverse for the entropy table set: find log10(eint/nH) [code] such that p(nH, eint) = p_target exactly, using the forward pfwd table. The eintP table only supplies the initial guess. This is the entropy-mode counterpart of eint_from_p_bisect (mod_eos_LTE), which is bound to eoslog_p - a table that is not loaded when eos_method='entropy' (its use there segfaulted on an unallocated array).

eint-axis limits of the forward table (uniform vs adaptive grid)

initial guess from the inverse table

bracket, expanding until the target is straddled

no bracket (target outside the table range) -> keep the table guess

Definition at line 383 of file mod_eos_LTE_entropy.t.

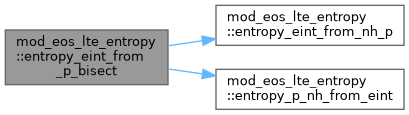

Here is the call graph for this function:

entropy_gamma1_from_nh_p()

double precision function, public mod_eos_lte_entropy::entropy_gamma1_from_nh_p	(	type(eos_table_container), intent(in)	g1p,
		type(eos_table_container), intent(in)	g1p_x,
		type(eos_table_container), intent(in)	g1p_y,
		type(eos_table_container), intent(in)	g1p_xy,
		double precision, intent(in)	log_nh_code,
		double precision, intent(in)	log_p_nh_code
	)

Inverse: Gamma_1 from (log nH, log p/nH). Bicubic Hermite of g1p.

Definition at line 448 of file mod_eos_LTE_entropy.t.

entropy_p_nh_from_eint()

pure double precision function, public mod_eos_lte_entropy::entropy_p_nh_from_eint	(	type(eos_table_container), intent(in)	pfwd,
		type(eos_table_container), intent(in)	pfwd_x,
		type(eos_table_container), intent(in)	pfwd_y,
		type(eos_table_container), intent(in)	pfwd_xy,
		double precision, intent(in)	log_nh_code,
		double precision, intent(in)	log_e_nh_code
	)

Definition at line 262 of file mod_eos_LTE_entropy.t.

entropy_t_and_y_from_nh_eint()

subroutine, public mod_eos_lte_entropy::entropy_t_and_y_from_nh_eint	(	type(eos_table_container), intent(in)	tfwd,
		type(eos_table_container), intent(in)	tfwd_x,
		type(eos_table_container), intent(in)	tfwd_y,
		type(eos_table_container), intent(in)	tfwd_xy,
		type(eos_table_container), intent(in)	neonh,
		type(eos_table_container), intent(in)	neonh_x,
		type(eos_table_container), intent(in)	neonh_y,
		type(eos_table_container), intent(in)	neonh_xy,
		double precision, intent(in)	log_nh_code,
		double precision, intent(in)	log_e_nh_code,
		double precision, intent(out)	t_code,
		double precision, intent(out)	y_out
	)

Forward: T and y from (log nH, log eint/nH) – combined for the update_eos_LTE hot path that needs both at once.

Parameters

[in]	tfwd	Fused (T, y) lookup: shares ONE cell-location call between the two bicubic Hermite evaluations. Tfwd and neOnH live on the same adaptive (lr, le) grid (same axis nodes), so the (ix, iy, tx, ty, dx, dy) coordinates and the cubic-basis values are identical for both. We compute them once and re-use, saving the locate work (binary search on adaptive axes) and the basis evaluations.
[in]	tfwd_x	Fused (T, y) lookup: shares ONE cell-location call between the two bicubic Hermite evaluations. Tfwd and neOnH live on the same adaptive (lr, le) grid (same axis nodes), so the (ix, iy, tx, ty, dx, dy) coordinates and the cubic-basis values are identical for both. We compute them once and re-use, saving the locate work (binary search on adaptive axes) and the basis evaluations.
[in]	tfwd_y	Fused (T, y) lookup: shares ONE cell-location call between the two bicubic Hermite evaluations. Tfwd and neOnH live on the same adaptive (lr, le) grid (same axis nodes), so the (ix, iy, tx, ty, dx, dy) coordinates and the cubic-basis values are identical for both. We compute them once and re-use, saving the locate work (binary search on adaptive axes) and the basis evaluations.
[in]	tfwd_xy	Fused (T, y) lookup: shares ONE cell-location call between the two bicubic Hermite evaluations. Tfwd and neOnH live on the same adaptive (lr, le) grid (same axis nodes), so the (ix, iy, tx, ty, dx, dy) coordinates and the cubic-basis values are identical for both. We compute them once and re-use, saving the locate work (binary search on adaptive axes) and the basis evaluations.

Definition at line 287 of file mod_eos_LTE_entropy.t.

entropy_t_from_nh_eint()

double precision function, public mod_eos_lte_entropy::entropy_t_from_nh_eint	(	type(eos_table_container), intent(in)	tfwd,
		type(eos_table_container), intent(in)	tfwd_x,
		type(eos_table_container), intent(in)	tfwd_y,
		type(eos_table_container), intent(in)	tfwd_xy,
		double precision, intent(in)	log_nh_code,
		double precision, intent(in)	log_e_nh_code
	)

Public wrappers – code-unit out.

Definition at line 251 of file mod_eos_LTE_entropy.t.

entropy_y_from_nh_eint()

double precision function, public mod_eos_lte_entropy::entropy_y_from_nh_eint	(	type(eos_table_container), intent(in)	neonh,
		type(eos_table_container), intent(in)	neonh_x,
		type(eos_table_container), intent(in)	neonh_y,
		type(eos_table_container), intent(in)	neonh_xy,
		double precision, intent(in)	log_nh_code,
		double precision, intent(in)	log_e_nh_code
	)

Forward: ne/nH from (log nH, log eint/nH). Single bicubic Hermite eval of the neOnH table.

Definition at line 276 of file mod_eos_LTE_entropy.t.

finalise_entropy_lte()

subroutine, public mod_eos_lte_entropy::finalise_entropy_lte

Entropy-method finalise: shift each loaded table's axes from CGS to code units and run the standard prepare. No aux builds – every runtime quantity is a single Hermite lookup. neOnH/Tfwd/pfwd/eintP/g1p are on (log nH, log eint/nH) (axis2_is_T=.false.); eintT is on (log nH, log T) (axis2_is_T=.true.). Each quantity ships value + three derivative tables.

The entropy method never loads eosT, but several callers read eosTvar{1,2}_{min,max} (the cold-cell eint floor, FI-fallback checks). Source them from eosTfwd, on the same forward grid.

Definition at line 76 of file mod_eos_LTE_entropy.t.

Here is the call graph for this function:

load_entropy_lte()

subroutine, public mod_eos_lte_entropy::load_entropy_lte

Forward (log nH, log eint/nH) -> thermodynamic state.

Inverse (log nH, log p/nH) -> eint/p ratio, Gamma_1 Inverse (log nH, log T) -> log10(eint/nH) Entropy-method load: six quantities, each a value table plus its three derivative tables, on the forward (nH, eint/nH), inverse-p (nH, p/nH) and inverse-T (nH, T) grids. Every runtime query is one bicubic-Hermite evaluation (see generate_entropy_tables.py).

Definition at line 55 of file mod_eos_LTE_entropy.t.

Here is the call graph for this function:
