Finite-volume relative magnetic helicity on a uniform Cartesian mesh. More...
Data Types | |
| type | magnetic_helicity_config |
| type | magnetic_helicity_result |
Functions/Subroutines | |
| subroutine, public | mh_params_read (files) |
| subroutine, public | mh_run_task () |
| subroutine, public | compute_magnetic_helicity_fv (config, result) |
Variables | |
| character(len=mh_name_len), public | mh_output_file ='' |
| integer, public | mh_gauge_axis =3 |
| double precision, public | mh_mg_tolerance =1.d-4 |
| integer, public | mh_mg_max_cycles =50 |
| double precision, public | mh_max_flux_imbalance =1.d-6 |
| logical, public | mh_write_debug_vti =.false. |
| logical, public | mh_write_mg_timing =.false. |
| character(len=mh_name_len), public | mh_debug_vti_file ='' |
| type(magnetic_helicity_result), save, public | mh_last_result |
Detailed Description
Finite-volume relative magnetic helicity on a uniform Cartesian mesh.
The implementation uses a DeVore gauge and streams one plane at a time. Plane data are reduced to a deterministic owner; consecutive plane owners exchange only the O(N_perp**2) integration state. No magnetic-field-line tracing or replicated three-dimensional field is used.
Function/Subroutine Documentation
◆ compute_magnetic_helicity_fv()
| subroutine, public mod_magnetic_helicity::compute_magnetic_helicity_fv | ( | type(magnetic_helicity_config), intent(in) | config, |
| type(magnetic_helicity_result), intent(out) | result | ||
| ) |
◆ mh_params_read()
| subroutine, public mod_magnetic_helicity::mh_params_read | ( | character(len=*), dimension(:), intent(in) | files | ) |
Definition at line 78 of file mod_magnetic_helicity.t.

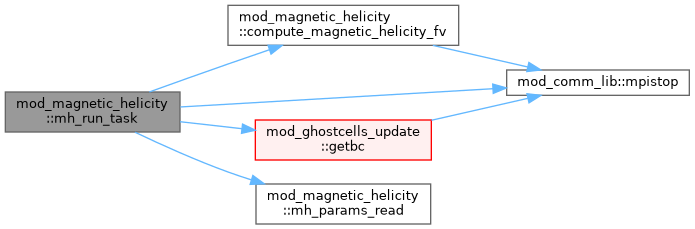

◆ mh_run_task()
| subroutine, public mod_magnetic_helicity::mh_run_task |
Variable Documentation
◆ mh_debug_vti_file
| character(len=mh_name_len), public mod_magnetic_helicity::mh_debug_vti_file ='' |
Definition at line 71 of file mod_magnetic_helicity.t.
◆ mh_gauge_axis
| integer, public mod_magnetic_helicity::mh_gauge_axis =3 |
Definition at line 65 of file mod_magnetic_helicity.t.
◆ mh_last_result
| type(magnetic_helicity_result), save, public mod_magnetic_helicity::mh_last_result |
Definition at line 72 of file mod_magnetic_helicity.t.
◆ mh_max_flux_imbalance
| double precision, public mod_magnetic_helicity::mh_max_flux_imbalance =1.d-6 |
Definition at line 68 of file mod_magnetic_helicity.t.
◆ mh_mg_max_cycles
| integer, public mod_magnetic_helicity::mh_mg_max_cycles =50 |
Definition at line 67 of file mod_magnetic_helicity.t.
◆ mh_mg_tolerance
| double precision, public mod_magnetic_helicity::mh_mg_tolerance =1.d-4 |
Definition at line 66 of file mod_magnetic_helicity.t.
◆ mh_output_file
| character(len=mh_name_len), public mod_magnetic_helicity::mh_output_file ='' |
Definition at line 64 of file mod_magnetic_helicity.t.
◆ mh_write_debug_vti
| logical, public mod_magnetic_helicity::mh_write_debug_vti =.false. |
Definition at line 69 of file mod_magnetic_helicity.t.
◆ mh_write_mg_timing
| logical, public mod_magnetic_helicity::mh_write_mg_timing =.false. |
Definition at line 70 of file mod_magnetic_helicity.t.
