mod_ionization_degree Module Reference

module ionization degree - get ionization degree for given temperature More...

Functions/Subroutines
subroutine, public	ionization_degree_init (he_abundance, rfactor_norm, table_name, include_energy)
subroutine, public	ionization_degree_from_temperature (ixil, ixol, te, iz_h, iz_he)
	Legacy array interface for T -> ionization degrees. Not used anymore; kept for compatibility and may be removed later.
subroutine, public	ionization_get_state_scalar (rho, p, t, rfactor, iz_h, iz_he)
subroutine, public	ionization_state_tp (t, p, rfactor, iz_h, iz_he)
subroutine, public	ionization_solve_p_rfactor (rho, t, p, rfactor)
subroutine, public	ionization_get_state (ixil, ixol, rho, p, t, rfactor, iz_h, iz_he)
subroutine, public	ionization_state_from_temperature_scalar (t, rfactor, iz_h, iz_he)
subroutine, public	ionization_get_rfactor_from_temperature (t, rfactor)
logical function, public	ionization_is_temperature_only ()
logical function, public	ionization_includes_energy ()
subroutine, public	ionization_check_eint_table (invgam)
subroutine, public	ionization_get_state_from_eint (rho, eint, invgam, t, p, rfactor, iz_h, iz_he)
subroutine, public	ionization_get_p_eint_from_rho_t (rho, t, invgam, p, eint, rfactor, iz_h, iz_he)
subroutine, public	ionization_get_eps_derivative_t (t, invgam, eps, deps_dt, dq_dt_out)
subroutine, public	ionization_get_csound2_t (t, invgam, csound2)

Detailed Description

module ionization degree - get ionization degree for given temperature

Function/Subroutine Documentation

ionization_check_eint_table()

subroutine, public mod_ionization_degree::ionization_check_eint_table

(

double precision, intent(in)

invgam

)

Definition at line 952 of file mod_ionization_degree.t.

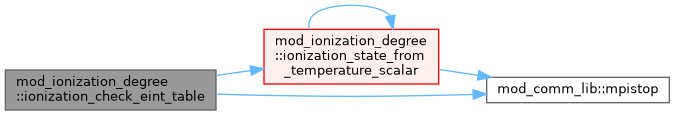

Here is the call graph for this function:

ionization_degree_from_temperature()

subroutine, public mod_ionization_degree::ionization_degree_from_temperature	(	integer, intent(in)	ixi,
		integer, intent(in)	l,
		integer, intent(in)	ixo,
			l,
		double precision, dimension(ixi^s), intent(in)	te,
		double precision, dimension(ixo^s), intent(out)	iz_h,
		double precision, dimension(ixo^s), intent(out)	iz_he
	)

Legacy array interface for T -> ionization degrees. Not used anymore; kept for compatibility and may be removed later.

Definition at line 419 of file mod_ionization_degree.t.

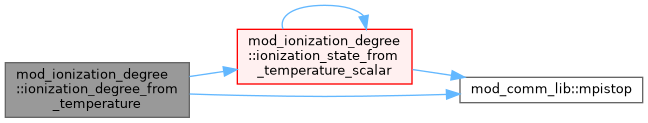

Here is the call graph for this function:

ionization_degree_init()

subroutine, public mod_ionization_degree::ionization_degree_init	(	double precision, intent(in)	he_abundance,
		double precision, intent(in)	rfactor_norm,
		character(len=*), intent(in), optional	table_name,
		logical, intent(in), optional	include_energy
	)

Definition at line 172 of file mod_ionization_degree.t.

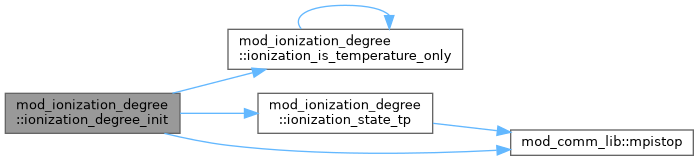

Here is the call graph for this function:

ionization_get_csound2_t()

subroutine, public mod_ionization_degree::ionization_get_csound2_t	(	double precision, intent(in)	t,
		double precision, intent(in)	invgam,
		double precision, intent(out)	csound2
	)

Definition at line 1148 of file mod_ionization_degree.t.

Here is the call graph for this function:

ionization_get_eps_derivative_t()

subroutine, public mod_ionization_degree::ionization_get_eps_derivative_t	(	double precision, intent(in)	t,
		double precision, intent(in)	invgam,
		double precision, intent(out)	eps,
		double precision, intent(out)	deps_dt,
		double precision, intent(out), optional	dq_dt_out
	)

Definition at line 1101 of file mod_ionization_degree.t.

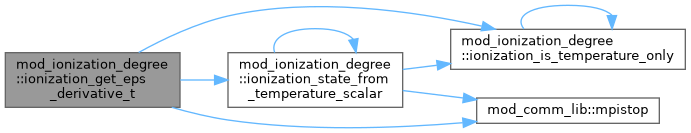

Here is the call graph for this function:

ionization_get_p_eint_from_rho_t()

subroutine, public mod_ionization_degree::ionization_get_p_eint_from_rho_t	(	double precision, intent(in)	rho,
		double precision, intent(in)	t,
		double precision, intent(in)	invgam,
		double precision, intent(out)	p,
		double precision, intent(out)	eint,
		double precision, intent(out)	rfactor,
		double precision, intent(out), optional	iz_h,
		double precision, intent(out), optional	iz_he
	)

Definition at line 1068 of file mod_ionization_degree.t.

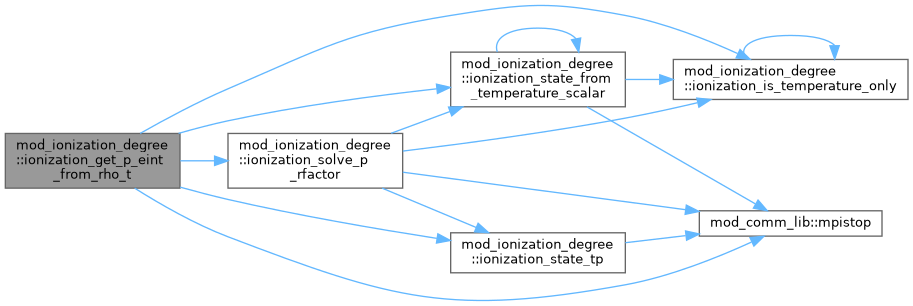

Here is the call graph for this function:

ionization_get_rfactor_from_temperature()

subroutine, public mod_ionization_degree::ionization_get_rfactor_from_temperature	(	double precision, intent(in)	t,
		double precision, intent(out)	rfactor
	)

Definition at line 927 of file mod_ionization_degree.t.

Here is the call graph for this function:

ionization_get_state()

subroutine, public mod_ionization_degree::ionization_get_state	(	integer, intent(in)	ixi,
		integer, intent(in)	l,
		integer, intent(in)	ixo,
			l,
		double precision, dimension(ixi^s), intent(in)	rho,
		double precision, dimension(ixi^s), intent(in)	p,
		double precision, dimension(ixi^s), intent(out)	t,
		double precision, dimension(ixi^s), intent(out)	rfactor,
		double precision, dimension(ixi^s), intent(out), optional	iz_h,
		double precision, dimension(ixi^s), intent(out), optional	iz_he
	)

Definition at line 671 of file mod_ionization_degree.t.

Here is the call graph for this function:

ionization_get_state_from_eint()

subroutine, public mod_ionization_degree::ionization_get_state_from_eint	(	double precision, intent(in)	rho,
		double precision, intent(in)	eint,
		double precision, intent(in)	invgam,
		double precision, intent(out)	t,
		double precision, intent(out)	p,
		double precision, intent(out)	rfactor,
		double precision, intent(out), optional	iz_h,
		double precision, intent(out), optional	iz_he
	)

Definition at line 1046 of file mod_ionization_degree.t.

Here is the call graph for this function:

ionization_get_state_scalar()

subroutine, public mod_ionization_degree::ionization_get_state_scalar	(	double precision, intent(in)	rho,
		double precision, intent(in)	p,
		double precision, intent(out)	t,
		double precision, intent(out)	rfactor,
		double precision, intent(out), optional	iz_h,
		double precision, intent(out), optional	iz_he
	)

Definition at line 515 of file mod_ionization_degree.t.

Here is the call graph for this function:

ionization_includes_energy()

logical function, public mod_ionization_degree::ionization_includes_energy

Definition at line 940 of file mod_ionization_degree.t.

Here is the call graph for this function:

ionization_is_temperature_only()

logical function, public mod_ionization_degree::ionization_is_temperature_only

Definition at line 934 of file mod_ionization_degree.t.

Here is the call graph for this function:

ionization_solve_p_rfactor()

subroutine, public mod_ionization_degree::ionization_solve_p_rfactor	(	double precision, intent(in)	rho,
		double precision, intent(in)	t,
		double precision, intent(out)	p,
		double precision, intent(out)	rfactor
	)

Definition at line 605 of file mod_ionization_degree.t.

Here is the call graph for this function:

ionization_state_from_temperature_scalar()

subroutine, public mod_ionization_degree::ionization_state_from_temperature_scalar	(	double precision, intent(in)	t,
		double precision, intent(out)	rfactor,
		double precision, intent(out), optional	iz_h,
		double precision, intent(out), optional	iz_he
	)

Definition at line 752 of file mod_ionization_degree.t.

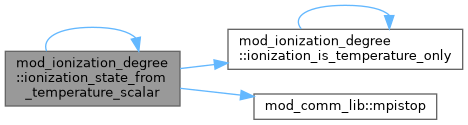

Here is the call graph for this function:

ionization_state_tp()

subroutine, public mod_ionization_degree::ionization_state_tp	(	double precision, intent(in)	t,
		double precision, intent(in)	p,
		double precision, intent(out)	rfactor,
		double precision, intent(out), optional	iz_h,
		double precision, intent(out), optional	iz_he
	)

Definition at line 572 of file mod_ionization_degree.t.

Here is the call graph for this function:
