module radiative cooling – add optically thin radiative cooling More...

Data Types
interface	get_subr1
interface	get_2var_subr
interface	local_rho2_factor_subr
	Optional local multiplier for density-squared radiative losses. More...
interface	eos_scalar2_func
	Scalar EoS inverse, e.g. fleint_from_T(log_nH, log_T). More...
type	rc_fluid

Functions/Subroutines
subroutine	radiative_cooling_rho2_factor (ixil, ixol, w, x, fl, factor)
subroutine	radiative_cooling_init_params (phys_gamma, he_abund)
	Radiative cooling initialization.

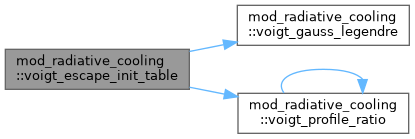

subroutine	voigt_escape_init_table ()
	Build the Voigt escape probability lookup table. Called once (guarded by voigt_table_ready flag). Uses 64-point Gauss-Legendre quadrature on [0, x_max] to evaluate E(tau_0) = (2 phi(0)/tau_0) * integral_0^{x_max} [1-exp(-tau_0 g(x))] dx where g(x) = phi(x)/phi(0) for the Voigt profile H(a,x) truncated at x_max.
double precision function	voigt_profile_ratio (a, x)
	Voigt profile ratio phi(x)/phi(0) using Humlicek (1982) Region I/II approx. For the small-a regime (a < 0.01), this simplifies to: H(a,x)/H(a,0) ~ exp(-x^2) + a*sqrt(pi)/x^2 for \|x\| > ~2 We use the exact Gaussian core + Lorentzian wing decomposition.
double precision function	voigt_escape_lookup (tau)
	Look up the Voigt escape probability for a given tau. Uses linear interpolation in log10(tau) space.
subroutine	voigt_gauss_legendre (a, b, n, x, w)
	Gauss-Legendre quadrature nodes and weights on [a,b]. Uses the Golub-Welsch algorithm for n points.
subroutine	radiative_cooling_init (fl, read_params)
subroutine	create_y_ppl (fl)
subroutine	getvar_cooling (ixil, ixol, w, x, coolrate, fl)
subroutine	getvar_cooling_exact (qdt, ixil, ixol, wct, w, x, coolrate, fl)
subroutine	radiative_cooling_add_source (qdt, ixil, ixol, wct, wctprim, w, x, qsourcesplit, active, fl)
subroutine	floortemperature (qdt, ixil, ixol, wct, w, x, fl)
double precision function	rc_trac_factor (fl, ixd, te_val)
	TRAC factor (T/Tcoff)^(5/2) of the losses below Tcoff, and 1 without TRAC or where a user TRAC mask switches the scaling off.
logical function	rc_variable_cv (fl, t1, t2)
	True where ionisation buffers the cooling step, so that c_V varies: a large change of T below the temperature above which c_V is constant.
double precision function	rc_eint_floor (fl, log_nh, nh_val)
	Internal energy per volume at the floor temperature tlow, ionisation included.
subroutine	radiative_cooling_taper (ixd, x_ndim, rho_val, te_val, rf_val, fl, factor)
subroutine	get_cool_equi (qdt, ixil, ixol, wct, w, x, fl, res)
subroutine	cool_exact (qdt, ixil, ixol, wct, wctprim, w, x, fl)
subroutine	calc_l_extended (tpoint, lpoint, fl)
double precision function	lowfip_fraction (tpoint, fl)
subroutine	findl (tpoint, lpoint, fl)
subroutine	findy (tpoint, ypoint, fl)
subroutine	findt (tpoint, ypoint, fl)
subroutine	finddldt (tpoint, dlpoint, fl)
subroutine	build_y_mod_table (fl)
	===================================================================
double precision function	simpson_composite (f, n, h)
	Composite Simpson's rule on (N+1) equally spaced samples (N even). N must be a positive even integer; h is the step size.
double precision function	boole_composite (f, n, h)
	Composite Boole's rule on (N+1) equally spaced samples (N a multiple of 4). Each 4-step block contributes (2h/45)*(7 f0 + 32 f1 + 12 f2 + 32 f3 + 7 f4).
double precision function	invert_row_bisect (y_row, t_grid, ncool, y_target)
	Bisection on a single Y_mod row to find log10(T) such that Y_mod_row(i) = y_target. The row is monotonically increasing in decreasing i (since Y(ncool)=0 grows toward Y(1)=Y_max). Returns log10 T (code units).
double precision function	findy_mod (te_loc, nh_loc, fl)
	Forward Y_mod lookup in (log10 nH, log10 T), both axes uniform in log space; along nH the product nH*Y is interpolated (Y_mod_row_weights).
double precision function	findt_mod (y_target, nh_loc, fl)
	Inverse Y_mod lookup: given Y_target and nH, return T such that Y_mod(log10 nH, log10 T) = Y_target. Bisection on the cooling-table i index using values interpolated between the two adjacent nH rows with the nH*Y weights of Y_mod_row_weights. Saturates at the table extremes when Y_target falls outside [Y(tcoolmax), Y(tcoolmin)].
subroutine	y_mod_row_weights (fy, fl, wlo, whi)
	weights between the nH rows jy and jy+1: nH*Y is interpolated linearly in log10 nH, exact for Y ~ 1/nH (fully ionised), where interpolating Y itself overestimates it

Variables
double precision, public	lb_cool_accum = 0.0d0
	Per-rank cooling-only compute accumulator for lb_diagnose. Sums the wall time spent inside radiative_cooling_add_source across all blocks and substages within one full advance() call. Reset by mod_advance::advance at the start of each step. Note: this is a subset of lb_compute_accum (which already encloses the whole advect1 block loop); it isolates the cooling Newton/exact-solver kernel cost from the surrounding finite-volume work.
double precision, parameter	rc_t_ymod_max_k = 2.0d5
	Temperature in K above which c_V is constant, the upper end of the Y_mod path.

Detailed Description

module radiative cooling – add optically thin radiative cooling

only uses the (Townsend) exact integration method, can be used in HD, ffhd, MHD, twofl

Assumptions: full ionized plasma dominated by H and He, ionization equilibrium Formula: Q=-n_H*n_e*f(T), positive f(T) function is pre-computed and tabulated or a piecewise power law Uses the various cooling tables stored in mod_radloss_tables.t

Function/Subroutine Documentation

◆ boole_composite()

double precision function mod_radiative_cooling::boole_composite	(	double precision, dimension(0:n), intent(in)	f,
		integer, intent(in)	n,
		double precision, intent(in)	h )

Composite Boole's rule on (N+1) equally spaced samples (N a multiple of 4). Each 4-step block contributes (2h/45)*(7 f0 + 32 f1 + 12 f2 + 32 f3 + 7 f4).

Definition at line 2038 of file mod_radiative_cooling.t.

◆ build_y_mod_table()

subroutine mod_radiative_cooling::build_y_mod_table ( type(rc_fluid), intent(inout) fl )

===================================================================

Variable-c_V Townsend extension (Y_mod)

The original Townsend (2009) exact integration scheme assumes a constant heat capacity c_V = rhoR/(gamma-1). For LTE plasmas with H/He ionisation, c_V is a strong function of temperature in the recombination zone, where ionisation buffers the cooling

The derivation defines a modified TEF Ytilde(T; rho) = int _T^{T_ref} c_V(T'; rho) / (n_H n_e(T'; rho) Lambda(T')) dT' with c_V the LTE volumetric heat capacity including the ionisation-energy reservoir. The integral is recast via the change of variables u = e_int/n_H so that the discrete construction never finite-differences c_V - both integrand and energy update are driven by the same eint_from_T table, guaranteeing bit-consistent energy conservation.

Must be called after eos_finalise() so that eoseint_from_T, eosT (forward), and eosneOnH are all in code units. The hook is bind_eos_to_source() in mod_hd_eos.t / mod_mhd_eos.t.

Algorithm: change of variables from T to u = e_int/n_H. For each log10 nH grid point j (taken from the eoseint_from_T table's nH axis):

Cache u_i = e_int/n_H at every cooling-curve T_i.
Walk i = ncool-1 down to 1 and accumulate Y_mod(j, i) = Y_mod(j, i+1) + int _{u_i}^{u_{i+1}} du / (n_e Lambda) using a composite Simpson (3-point, O(h^4)) or Boole (5-point, O(h^6)) rule with N_sub sub-intervals.
The integrand evaluates n_e via y_from_nH_eint and Lambda via findL (with T from T_from_nH_eint).

Per-row inverse table T_mod_inv(j, k) is also built for the 'table' inverse method (alternative to bisection).

Definition at line 1861 of file mod_radiative_cooling.t.

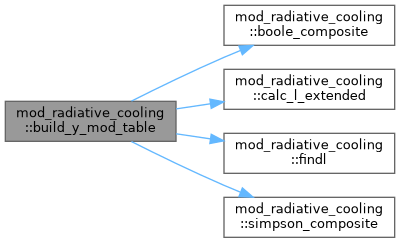

Here is the call graph for this function:

◆ calc_l_extended()

subroutine mod_radiative_cooling::calc_l_extended	(	double precision, intent(in)	tpoint,
		double precision, intent(out)	lpoint,
		type(rc_fluid), intent(in)	fl )

Definition at line 1633 of file mod_radiative_cooling.t.

◆ cool_exact()

subroutine mod_radiative_cooling::cool_exact	(	double precision, intent(in)	qdt,
		integer, intent(in)	ixi,
		integer, intent(in)	l,
		integer, intent(in)	ixo,
			l,
		double precision, dimension(ixi^s,1:nw), intent(in)	wct,
		double precision, dimension(ixi^s,1:nw), intent(in)	wctprim,
		double precision, dimension(ixi^s,1:nw), intent(inout)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		type(rc_fluid), intent(in)	fl )

Always compute the CLASSICAL Townsend advance first. This gives Tlocal2 using the same path as ionE=false. If the resulting dT is small (saturated y region), the classical kinetic form is exact and we're done. If dT is large (recombination zone), we redo the advance with the Y_mod path to capture variable-c_V dynamics from ionisation buffering.

Upgrade to Y_mod only in the recombination zone (large dT). Guard: if findY_mod overflows (cooling curve near-zero at this T), keep the classical result – variable c_V is irrelevant where Lambda ~ 0.

Recombination zone: use table-based de for variable c_V.

Saturated y or non-ionE: classical Townsend kinetic form.

Definition at line 1465 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ create_y_ppl()

subroutine mod_radiative_cooling::create_y_ppl ( type(rc_fluid) fl )

Definition at line 1000 of file mod_radiative_cooling.t.

◆ finddldt()

subroutine mod_radiative_cooling::finddldt	(	double precision, intent(in)	tpoint,
		double precision, intent(out)	dlpoint,
		type(rc_fluid), intent(in)	fl )

Definition at line 1785 of file mod_radiative_cooling.t.

◆ findl()

subroutine mod_radiative_cooling::findl	(	double precision, intent(in)	tpoint,
		double precision, intent(out)	lpoint,
		type(rc_fluid), intent(in)	fl )

Definition at line 1675 of file mod_radiative_cooling.t.

◆ findt()

subroutine mod_radiative_cooling::findt	(	double precision, intent(out)	tpoint,
		double precision, intent(in)	ypoint,
		type(rc_fluid), intent(in)	fl )

Definition at line 1738 of file mod_radiative_cooling.t.

◆ findt_mod()

double precision function mod_radiative_cooling::findt_mod	(	double precision, intent(in)	y_target,
		double precision, intent(in)	nh_loc,
		type(rc_fluid), intent(in)	fl )

Inverse Y_mod lookup: given Y_target and nH, return T such that Y_mod(log10 nH, log10 T) = Y_target. Bisection on the cooling-table i index using values interpolated between the two adjacent nH rows with the nH*Y weights of Y_mod_row_weights. Saturates at the table extremes when Y_target falls outside [Y(tcoolmax), Y(tcoolmin)].

Definition at line 2136 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ findy()

subroutine mod_radiative_cooling::findy	(	double precision, intent(in)	tpoint,
		double precision, intent(out)	ypoint,
		type(rc_fluid), intent(in)	fl )

Definition at line 1700 of file mod_radiative_cooling.t.

◆ findy_mod()

double precision function mod_radiative_cooling::findy_mod	(	double precision, intent(in)	te_loc,
		double precision, intent(in)	nh_loc,
		type(rc_fluid), intent(in)	fl )

Forward Y_mod lookup in (log10 nH, log10 T), both axes uniform in log space; along nH the product nH*Y is interpolated (Y_mod_row_weights).

Definition at line 2100 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ floortemperature()

subroutine mod_radiative_cooling::floortemperature	(	double precision, intent(in)	qdt,
		integer, intent(in)	ixi,
		integer, intent(in)	l,
		integer, intent(in)	ixo,
			l,
		double precision, dimension(ixi^s,1:nw), intent(in)	wct,
		double precision, dimension(ixi^s,1:nw), intent(inout)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		type(rc_fluid), intent(in)	fl )

Definition at line 1208 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ get_cool_equi()

subroutine mod_radiative_cooling::get_cool_equi	(	double precision, intent(in)	qdt,
		integer, intent(in)	ixi,
		integer, intent(in)	l,
		integer, intent(in)	ixo,
			l,
		double precision, dimension(ixi^s,1:nw), intent(in)	wct,
		double precision, dimension(ixi^s,1:nw), intent(inout)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		type(rc_fluid), intent(in)	fl,
		double precision, dimension(ixi^s), intent(out)	res )

Always classical Townsend first. Upgrade to Y_mod only in the recombination zone (large dT) - saturated y uses the identical formula as ionE=false, removing per-substep asymmetry.

Definition at line 1351 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ getvar_cooling()

subroutine mod_radiative_cooling::getvar_cooling	(	integer, intent(in)	ixi,
		integer, intent(in)	l,
		integer, intent(in)	ixo,
			l,
		double precision, dimension(ixi^s,1:nw)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		double precision, dimension(ixi^s), intent(out)	coolrate,
		type(rc_fluid), intent(in)	fl )

Definition at line 1024 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ getvar_cooling_exact()

subroutine mod_radiative_cooling::getvar_cooling_exact	(	double precision, intent(in)	qdt,
		integer, intent(in)	ixi,
		integer, intent(in)	l,
		integer, intent(in)	ixo,
			l,
		double precision, dimension(ixi^s, 1:nw), intent(in)	wct,
		double precision, dimension(ixi^s, 1:nw)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		double precision, dimension(ixi^s), intent(out)	coolrate,
		type(rc_fluid), intent(in)	fl )

Always classical Townsend first. Upgrade to Y_mod only where ionisation buffering matters (large dT, recombination zone)

Recombination zone: table-based de for variable c_V.

Saturated y or non-ionE: identical Townsend kinetic form.

Definition at line 1070 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ invert_row_bisect()

double precision function mod_radiative_cooling::invert_row_bisect	(	double precision, dimension(ncool), intent(in)	y_row,
		double precision, dimension(ncool), intent(in)	t_grid,
		integer, intent(in)	ncool,
		double precision, intent(in)	y_target )

Bisection on a single Y_mod row to find log10(T) such that Y_mod_row(i) = y_target. The row is monotonically increasing in decreasing i (since Y(ncool)=0 grows toward Y(1)=Y_max). Returns log10 T (code units).

Definition at line 2058 of file mod_radiative_cooling.t.

◆ lowfip_fraction()

double precision function mod_radiative_cooling::lowfip_fraction	(	double precision, intent(in)	tpoint,
		type(rc_fluid), intent(in)	fl )

Definition at line 1648 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ radiative_cooling_add_source()

subroutine mod_radiative_cooling::radiative_cooling_add_source	(	double precision, intent(in)	qdt,
		integer, intent(in)	ixi,
		integer, intent(in)	l,
		integer, intent(in)	ixo,
			l,
		double precision, dimension(ixi^s,1:nw), intent(in)	wct,
		double precision, dimension(ixi^s,1:nw), intent(in)	wctprim,
		double precision, dimension(ixi^s,1:nw), intent(inout)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		logical, intent(in)	qsourcesplit,
		logical, intent(inout)	active,
		type(rc_fluid), intent(in)	fl )

Definition at line 1180 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ radiative_cooling_init()

subroutine mod_radiative_cooling::radiative_cooling_init	(	type(rc_fluid), intent(inout)	fl,
		external subroutine(type(rc_fluid), intent(inout) fl)	read_params )

Definition at line 482 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ radiative_cooling_init_params()

subroutine mod_radiative_cooling::radiative_cooling_init_params	(	double precision, intent(in)	phys_gamma,
		double precision, intent(in)	he_abund )

Radiative cooling initialization.

Definition at line 298 of file mod_radiative_cooling.t.

◆ radiative_cooling_rho2_factor()

subroutine mod_radiative_cooling::radiative_cooling_rho2_factor	(	integer, intent(in)	ixi,
		integer, intent(in)	l,
		integer, intent(in)	ixo,
			l,
		double precision, dimension(ixi^s,1:nw), intent(in)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		type(rc_fluid), intent(in)	fl,
		double precision, dimension(ixi^s), intent(out)	factor )

Definition at line 286 of file mod_radiative_cooling.t.

◆ radiative_cooling_taper()

subroutine mod_radiative_cooling::radiative_cooling_taper	(	integer, intent(in)	ix,
		integer, intent(in)	d,
		double precision, intent(in)	x_ndim,
		double precision, intent(in)	rho_val,
		double precision, intent(in)	te_val,
		double precision, intent(in)	rf_val,
		type(rc_fluid), intent(in)	fl,
		double precision, intent(out)	factor )

Parameters

[in]	ix	Compute multiplicative taper factor for radiative cooling. Returns 1.0 when no tapering applies; < 1.0 where a user mask or the SC transfer takes the losses, near boundaries, at high density, or in optically thick regions
[in]	d	Compute multiplicative taper factor for radiative cooling. Returns 1.0 when no tapering applies; < 1.0 where a user mask or the SC transfer takes the losses, near boundaries, at high density, or in optically thick regions

Definition at line 1270 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ rc_eint_floor()

double precision function mod_radiative_cooling::rc_eint_floor	(	type(rc_fluid), intent(in)	fl,
		double precision, intent(in)	log_nh,
		double precision, intent(in)	nh_val )

Internal energy per volume at the floor temperature tlow, ionisation included.

Definition at line 1264 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ rc_trac_factor()

double precision function mod_radiative_cooling::rc_trac_factor	(	type(rc_fluid), intent(in)	fl,
		integer, intent(in)	ix,
		integer, intent(in)	d,
		double precision, intent(in)	te_val )

TRAC factor (T/Tcoff)^(5/2) of the losses below Tcoff, and 1 without TRAC or where a user TRAC mask switches the scaling off.

Definition at line 1241 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ rc_variable_cv()

logical function mod_radiative_cooling::rc_variable_cv	(	type(rc_fluid), intent(in)	fl,
		double precision, intent(in)	t1,
		double precision, intent(in)	t2 )

True where ionisation buffers the cooling step, so that c_V varies: a large change of T below the temperature above which c_V is constant.

Definition at line 1257 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ simpson_composite()

double precision function mod_radiative_cooling::simpson_composite	(	double precision, dimension(0:n), intent(in)	f,
		integer, intent(in)	n,
		double precision, intent(in)	h )

Composite Simpson's rule on (N+1) equally spaced samples (N even). N must be a positive even integer; h is the step size.

Definition at line 2021 of file mod_radiative_cooling.t.

◆ voigt_escape_init_table()

subroutine mod_radiative_cooling::voigt_escape_init_table

Build the Voigt escape probability lookup table. Called once (guarded by voigt_table_ready flag). Uses 64-point Gauss-Legendre quadrature on [0, x_max] to evaluate E(tau_0) = (2 phi(0)/tau_0) * integral_0^{x_max} [1-exp(-tau_0 g(x))] dx where g(x) = phi(x)/phi(0) for the Voigt profile H(a,x) truncated at x_max.

Definition at line 311 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ voigt_escape_lookup()

double precision function mod_radiative_cooling::voigt_escape_lookup ( double precision, intent(in) tau )

Look up the Voigt escape probability for a given tau. Uses linear interpolation in log10(tau) space.

Definition at line 401 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ voigt_gauss_legendre()

subroutine mod_radiative_cooling::voigt_gauss_legendre	(	double precision, intent(in)	a,
		double precision, intent(in)	b,
		integer, intent(in)	n,
		double precision, dimension(n), intent(out)	x,
		double precision, dimension(n), intent(out)	w )

Gauss-Legendre quadrature nodes and weights on [a,b]. Uses the Golub-Welsch algorithm for n points.

Definition at line 439 of file mod_radiative_cooling.t.

◆ voigt_profile_ratio()

double precision function mod_radiative_cooling::voigt_profile_ratio	(	double precision, intent(in)	a,
		double precision, intent(in)	x )

Voigt profile ratio phi(x)/phi(0) using Humlicek (1982) Region I/II approx. For the small-a regime (a < 0.01), this simplifies to: H(a,x)/H(a,0) ~ exp(-x^2) + a*sqrt(pi)/x^2 for |x| > ~2 We use the exact Gaussian core + Lorentzian wing decomposition.

Definition at line 375 of file mod_radiative_cooling.t.

Here is the call graph for this function:

◆ y_mod_row_weights()

subroutine mod_radiative_cooling::y_mod_row_weights	(	double precision, intent(in)	fy,
		type(rc_fluid), intent(in)	fl,
		double precision, intent(out)	wlo,
		double precision, intent(out)	whi )

weights between the nH rows jy and jy+1: nH*Y is interpolated linearly in log10 nH, exact for Y ~ 1/nH (fully ionised), where interpolating Y itself overestimates it

Definition at line 2191 of file mod_radiative_cooling.t.

Variable Documentation

◆ lb_cool_accum

double precision, public mod_radiative_cooling::lb_cool_accum = 0.0d0

Per-rank cooling-only compute accumulator for lb_diagnose. Sums the wall time spent inside radiative_cooling_add_source across all blocks and substages within one full advance() call. Reset by mod_advance::advance at the start of each step. Note: this is a subset of lb_compute_accum (which already encloses the whole advect1 block loop); it isolates the cooling Newton/exact-solver kernel cost from the surrounding finite-volume work.

Definition at line 25 of file mod_radiative_cooling.t.

◆ rc_t_ymod_max_k

double precision, parameter mod_radiative_cooling::rc_t_ymod_max_k = 2.0d5

Temperature in K above which c_V is constant, the upper end of the Y_mod path.

Definition at line 54 of file mod_radiative_cooling.t.

Data Types

Functions/Subroutines

Variables

Detailed Description

Function/Subroutine Documentation

◆ boole_composite()

◆ build_y_mod_table()

Variable-c_V Townsend extension (Y_mod)

◆ calc_l_extended()

◆ cool_exact()

◆ create_y_ppl()

◆ finddldt()

◆ findl()

◆ findt()

◆ findt_mod()

◆ findy()

◆ findy_mod()

◆ floortemperature()

◆ get_cool_equi()

◆ getvar_cooling()

◆ getvar_cooling_exact()

◆ invert_row_bisect()

◆ lowfip_fraction()

◆ radiative_cooling_add_source()

◆ radiative_cooling_init()

◆ radiative_cooling_init_params()

◆ radiative_cooling_rho2_factor()

◆ radiative_cooling_taper()

◆ rc_eint_floor()

◆ rc_trac_factor()

◆ rc_variable_cv()

◆ simpson_composite()

◆ voigt_escape_init_table()

◆ voigt_escape_lookup()

◆ voigt_gauss_legendre()

◆ voigt_profile_ratio()

◆ y_mod_row_weights()

Variable Documentation

◆ lb_cool_accum

◆ rc_t_ymod_max_k
